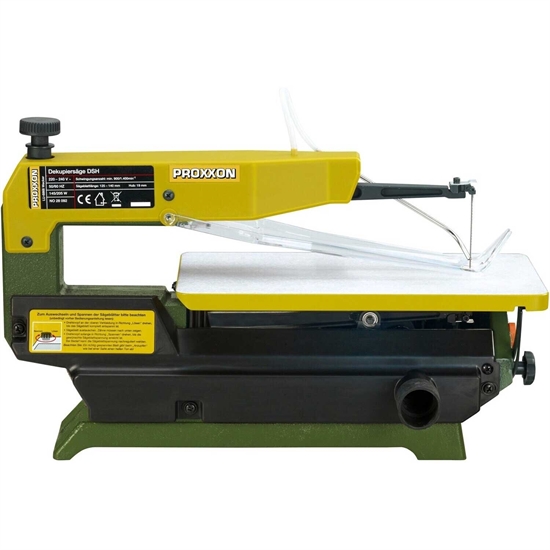

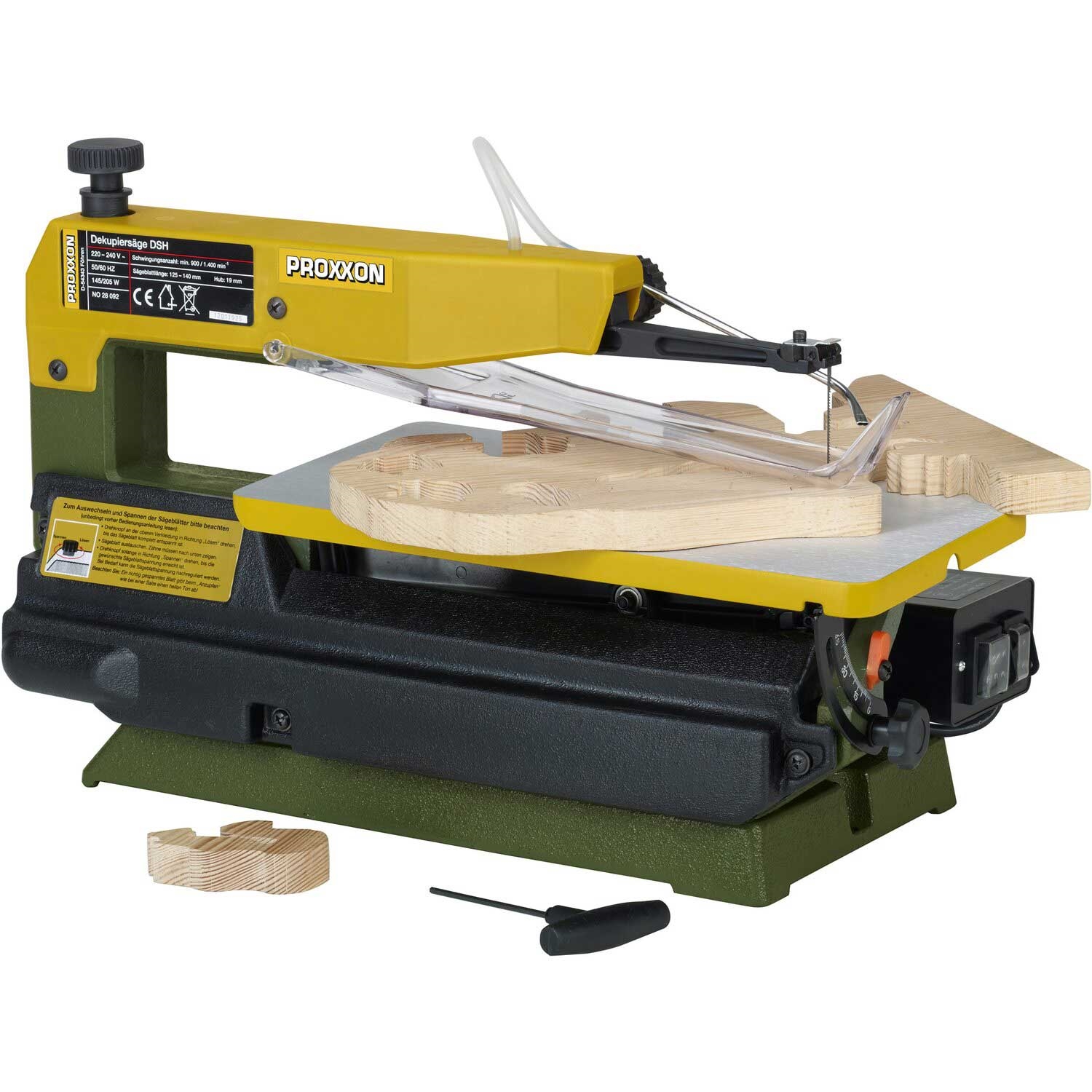

Scroll Saw Proxxon DSH

Low-noise two-speed scroll saw for clear cuts – no subsequent finishing necessary.

The scroll saw Proxxon DSH is perfect for schools and training workshops. In addition, it is a really good machine for precision mechanics, model building, toy manufacturing (puzzles as well), designers and architects.

The scroll saw is used for standard saw blades with pin ends, but normal fretsaw blades without pins also can be securely clamped.

The saw has a super low-noise cutting performance: 50 mm in wood, 30 mm in plastic, 10 mm in non-ferrous metals. It easily cuts through Plexiglas, glass fibre reinforced plastic, foam, rubber, leather or cork.

Proxxon DSH has a holder for saw blades with pin ends. Also for clamping normal fretsaw blades (without pin ends).

It has a slender saw arm of die-cast aluminium for unobstructed view from top. Air blower with adjustable air nozzle ensures unobstructed view of the workpiece. The saw's base housing is made of cast steel for stability and working without vibrations (can also be fitted on a table top). The sturdy table of die-cast aluminium (360 x 180 mm) can be tilted by 45° for mitre sawing. Equipped with a suction connection with vacuum cleaner adapter.

5 coarse and 5 fine blades are included.

Specifications:
- 220 - 240 V. 50/60 Hz.
- Powerful 2-speed motor (200 W) (990 or 1500 strokes per minute)
- Constant number of strokes, also at high load
- Stroke length 19 mm
- Throat 400 mm, maximum cutting depth 50 mm, at 45° mitre 25mm
- Dimensions: 53 (L) x 27 (W) x 30 (H) cm
